Technical Parameters: Process Connection: 1/2", 3/4" or 1" BSP/NPT Female MOC of wetted PArts : SS316 ( Standard Version) Max Continuous Pressure: 200 Kg/cm2 Max. Working Continuous Temperature: 80 Deg. C Electrical Rating: 1A 230 VAC/DC SPDT Reed Switch. Electrical Connection: 4 PIN DIN 43650 Connector. IP Rating : IP65 Flow Ranges : 5 - 30 LPM , 10- 60 LPM ( Water) Setpoint Accuracy: + 3% of FSR

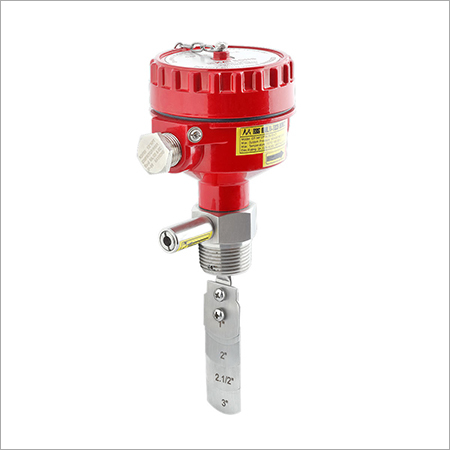

Enclosure-Die cast Aluminum wether proof to IP67 Material of construction-SS316 Housing Lever Paddle & Hardware Pressure Drop-Less than 150 mbar at qmax. Temperature Range-10-100 Degree C Max system pressure-50 bar(standard version) high pressure version can be provided on demand

Technical Parameters: Process Connection: from BSP/NPT Max Working Pressure: 10 Kg/cm2 ( Test Pressuree 20 Kg/cm2) Max Working Temperature: 100O C ( Test Temp. 120O C) Electrical Rating : 1A 230 VAC SPDT Reed Switch Termination : 1. Mtr. 3 core wire/ DIN Connector if required

Technical Parameters: Process Connection: 1/4" , 3/8" or 1/2" BSP/NPT Female MOC of wetted PArts : SS316 ( Standard Version) Max Continuous Pressure: 200 Kg/cm2 Max. Working Continuous Temperature: 80 Deg. C Electrical Rating: 1A 230 VAC/DC SPDT Reed Switch. Electrical Connection: 4 PIN DIN 43650 Connector. IP Rating : IP65 Flow Ranges : 0.5 - 5 LPM , 2- 20 LPM ( Water) Setpoint Accuracy: + 3% of FSR
