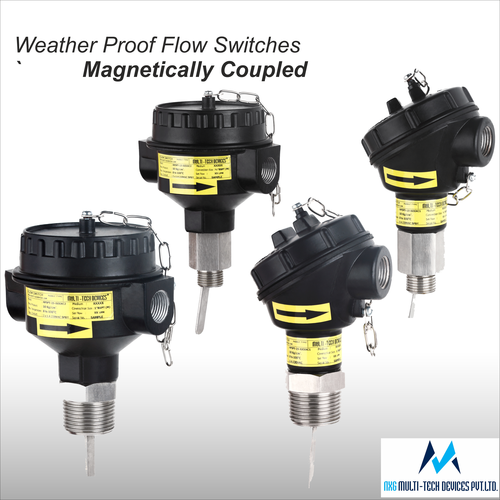

We are one of the leading manufacturers, exporters and suppliers of a supreme quality range of Paddle Type Flow Switches. These switches are suitable for low and medium flow lines of liquids and gases. The offered switches are manufactured by making use of premium quality raw materials with the implementation of ultra-modern technology as per the set industry standards. Prior delivery, these switches are strictly examined on certain parameters of quality to ensure their flawlessness at clients' end. Our provided Paddle Type Flow Switches are widely used in pneumatic and hydraulic machines.
Features:
Easy to use
Simple installation
Anti-corrosive
Robustness
Product Details
Minimum Order Quantity | 1 Piece |
Cable Entry | 1/2 Inch Female M20 x 1.5 for ATEX Enclosure |
Model Name/Number | EPMFSPT |
Switching Current | Refer Catalog |
Flow Rate | Refer Catalog |
Brand | NXG MTD |
Operating Pressure | Refer Catalog |
Usage/Application | Water, Oil, Petroleum, Air, biogas |
Country of Origin | Made in India |
Type of ex protection | Flameprrof Ex d |
Temperature | 10-100 Degree C |
Set point Tolerance | +/- 3-5% |
Repeatability Tolerance | +/-1-2% |
Pressure Drop | Less than150mbar at qmax. |
Max system pressure | 50 bar(standard version) high pressure version can be provided on demand |
Material of contraction | SS316 |
Exproof Class | Explosion Prrof to Gr IIA / IIB & IIC CCOE Approval. ATEX Approval |
Enclosure | Die cast Aluminum wether proof to IP67,SS31 |
Contact Rating | 5A 230VAC SPDT Micro switch |
