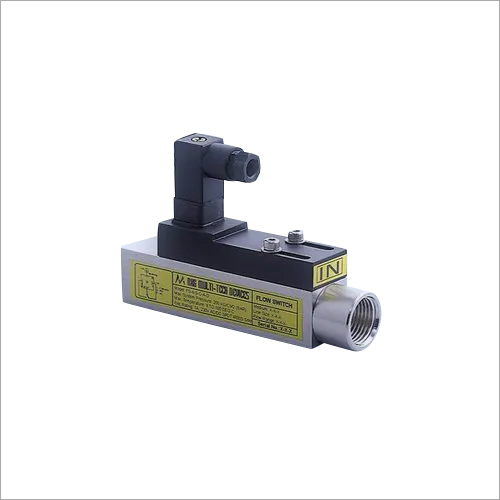

Miniature Flow Switches

Miniature Flow Switches
Miniature Flow Switches
Send Inquiry
Product Code : FS-5SCAD
  • Minimum Order Quantity
  • 10
  • Unit of Measure
  • Piece/Pieces
  • Payment Terms
  • Cash in Advance (CID), Others
  • Supply Ability
  • As per client requirements Per Day
  • Delivery Time
  • Week
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • Yes
Product Description

Miniature Flow Switches

Fostered with a team of highly experienced professionals, we have been able to manufacture, export and supply Miniature Flow Switches. These switches are used in various application areas such as lubrication systems, welding machines, machine tool and many more for controlling the flow of fluids. Can be availed in a spectrum of specifications, offered switches are precisely manufactured with complete perfection using high quality raw materials under the able guidance of our adroit experts. Prior delivering at customers' end, these switches are rigorously tested on various parameters of quality. Our valuable clients can avail these Miniature Flow Switches at industry leading price.


  • Less maintenance

  • Easy installation

  • Strong construction

  • Elevated durability

Inline Flow Switch -3/4" SS316

Miniature Flow Switches are pistone operated flow Switches and are availabe in Stainless Steel 316 Material. this flow switch is being used is various type of Industries including, Machine tool, collant flow detection and lubrication systems.
How does it work?
Miniature Seriies Flow Switches offers the proven and the most reliable design based on the movement of a spring-loaded piston within a cylindrical tube and a magnetic reed switch, which detects the position of a piston. The piston position varies with respect to the fluid flow rate.

Technical Parameters

  • Line Size - 3/4" BSP Female.

  • Settable FLow Ranges (water) - 0.5 - 5 LPM , 1-10 LPM , 3-30 LPM

  • Max OPerating Pressure - 100 Kg/cm2MOC- SS316Max

  • OPerating Temperature - 80 Deg C ( 120 Deg. C also available on request)

  • Electrical rating - 1A 230 VAC/DC SPDT Reed Switch. ( 80VA)Electrical Connection - DIN connector.
